G6-87 High Precision Common Rail Injector Travel Measuring Kit | Common Rail Injector Stroke Measurement Tool

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

Product Description

The G6-87 is an advanced professional diesel injector travel calibration workstation engineered for the most rigorous industrial demands. This high-sensitivity common rail needle lift measuring tool allows technicians to determine precise solenoid travel and nozzle lift values (AH, DNH, UEH, RSL), ensuring balanced fuel delivery across all engine cylinders.

By utilizing this integrated Injector Stroke Tester, mechanics can effectively eliminate delivery inconsistencies caused by mechanical wear. For a complete diagnostic overhaul, use this workstation to prepare injectors before final performance verification on a high-end common rail test bench. Its pneumatic 3-jaw chuck and high-precision digital gauge guarantee repeatable and error-free results for every fuel system service cycle

Scene graph

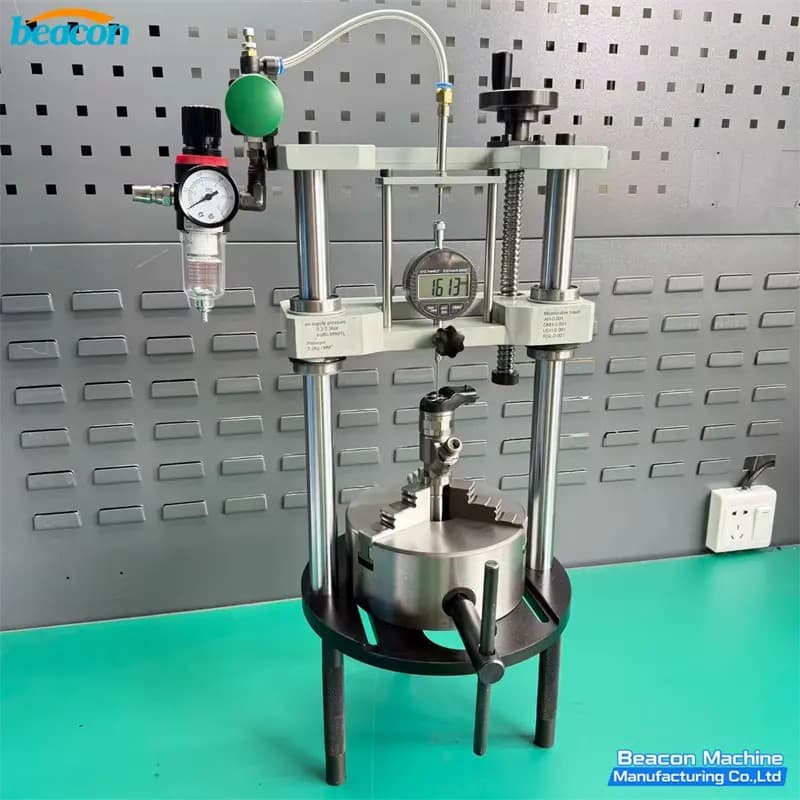

G6-87 injector stroke measurement tool set full pneumatic assembly with digital gauge.

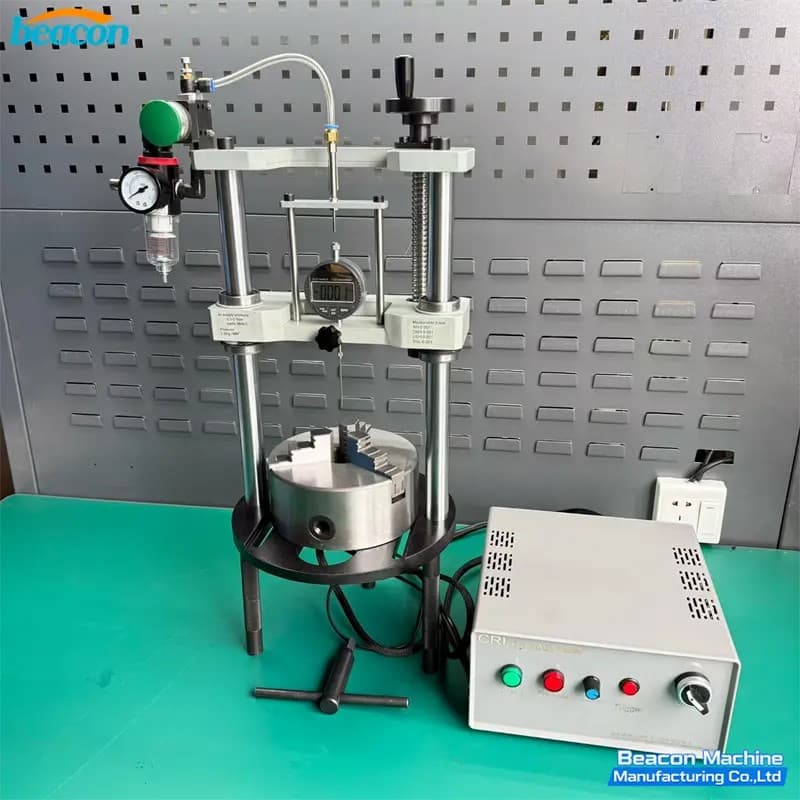

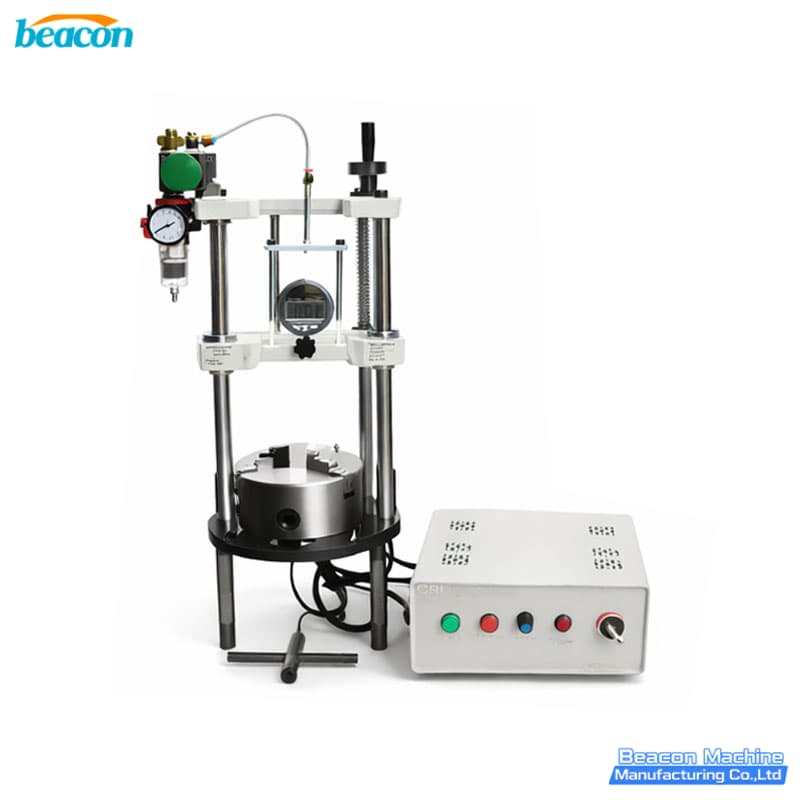

Professional diesel injector travel calibration workstation shown with its external air control box.

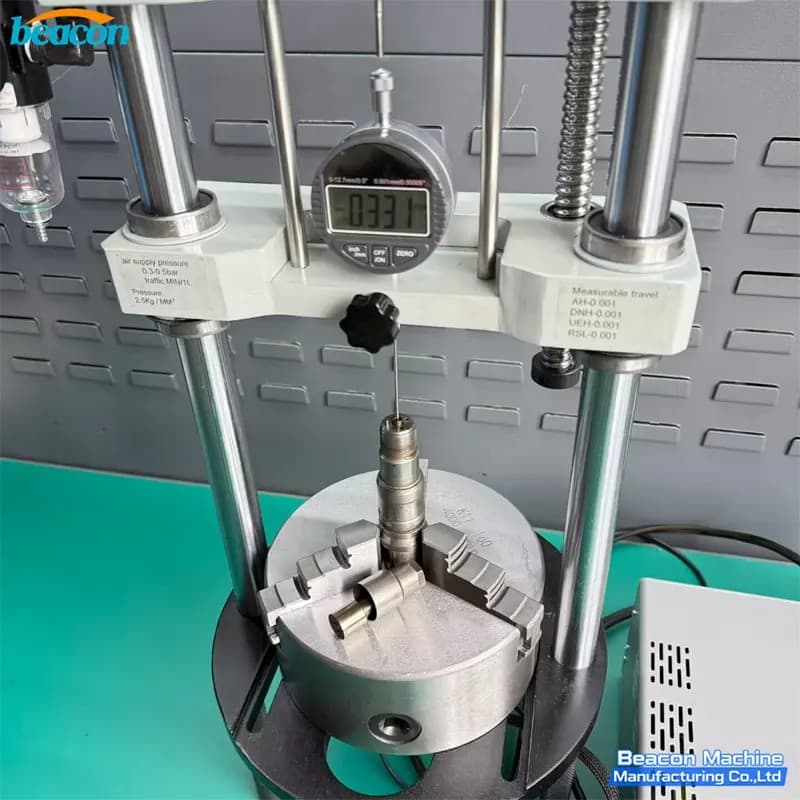

High-sensitivity common rail needle lift measuring tool featuring a sub-micron digital dial indicator.

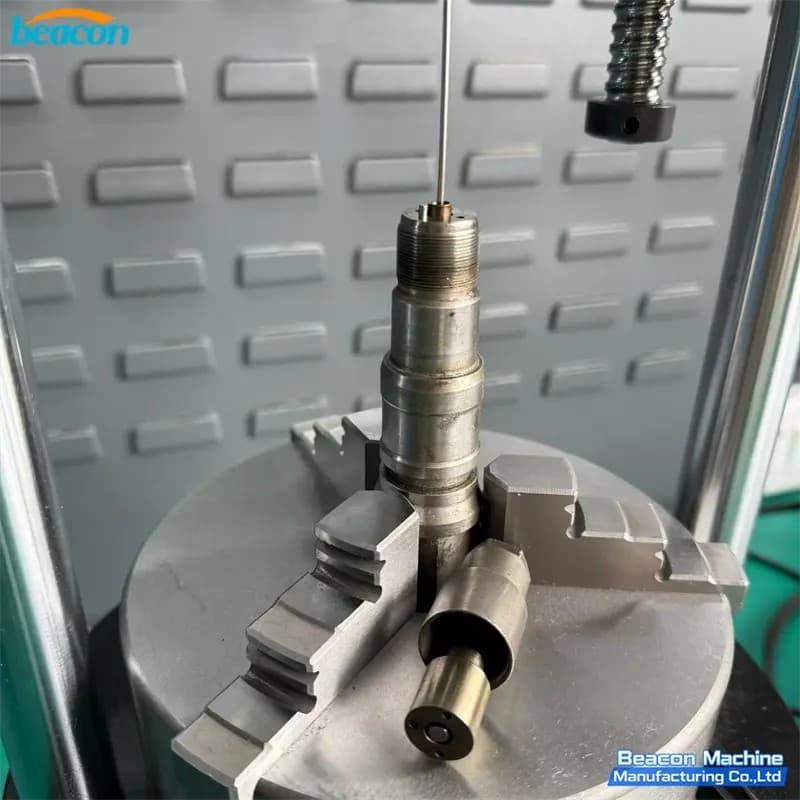

Close-up of G6-87 injector stroke tester pneumatic chuck securely holding a diesel injector.

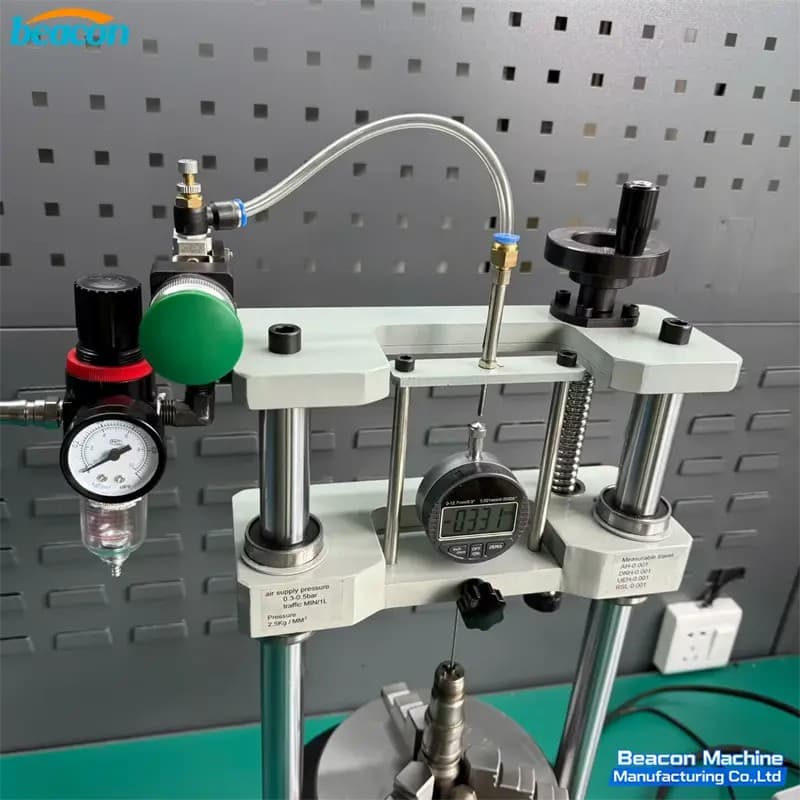

Detailed view of the air supply pressure regulator and flow meter on the G6-87 measurement stand.

parameter

Features	Specifications
Model Number	G6-87
Measurable Parameters	AH, DNH, UEH, RSL
Measurement Resolution	0.001mm (Digital Micrometer)
Clamping Type	3-Jaw Precision Pneumatic Chuck
Air Supply Pressure	0.3 - 0.5 Bar
Internal Working Pressure	2.5 kg / mm²
Drive Method	Integrated Pneumatic Air Control
Compatible Injectors	Bosch, Denso, Delphi, Siemens, CAT
Frame Material	Industrial Grade Hardened Alloy Steel
Control Unit	External Air Regulation & Filtration Box
Power Source	Battery-powered Digital Display
